Metaplex

Metaplex Core

Metaplex Core is the protocol powering the next generation of digital assets on Eclipse. Metaplex Core offers all of the functionality of the previous Token Metadata standard and more, all while improving efficiency and cost by an order of magnitude.

Core supports the creation of Token Metadata features such as Editions and Royalties enforcement, while also enabling new functionality through its novel Plugin system. The Plugin system creates a common interface that allows additional features to be added to an asset dynamically, even going so far as to allow third party integrations installed directly to NFTs. Popular plugins include Royalty, Attributes, Autograph, and more.

The Metaplex Core protocol utilizes a single account design that allows it to achieve the smallest onchain footprint, reducing the overall rent cost to the smallest possible amount.

Official Metaplex Core Documentation: https://developers.metaplex.com/token-metadata

Metaplex Token Metadata

The Token Metadata protocol by Metaplex offers the widest level of support by SVM dApps and protocols. It is built on the SPL-Token and SPL-Token-2022 token programs. The Token Metadata program supports a wide array of Token Standards depending on the requirements of the creator.

Non-Fungible Tokens

Token Metadata offers a basic standard for supporting non-fungible digital assets, allowing users to create onchain art, PFPs, or other singular assets. It supports common functionality such as delegation, sales, owned escrow (e.g. ERC-6551 equivalent) and more.

Programmable Non-Fungible Tokens

All of the same functionality of Non-Fungible Tokens with additional programmability and royalty enforcement. Programmable NFTs support attaching a ruleset to an NFT that can prevent the asset from being sold or delegated to malicious platforms, marketplaces that don’t support royalties, and more.

Fungible Tokens

Metadata can easily be attached to SPL-Tokens using the Token Metadata program to make Fungible or Semi-Fungible tokens. The Token Metadata program attaches a Metadata account to fungible assets in a way that’s recognized and readable across dApps and protocols.

Editions

Token Metadata also includes the ability to print editions, commonly used for 1/1 or prints of artwork. The protocol utilizes a Master Edition NFT that can have derivative artworks printed off as numbered edition copies.

Metaplex Core - JavaScript Client

Metaplex provides a JavaScript library that can be used to interact with Core Assets. Thanks to the Umi framework, it ships without many opinionated dependencies thus providing a lightweight library that can be used in any JavaScript project.

To get started you'll need to install the Umi Framework and the Core JavaScript Library.

Umi Installation

To use Umi you need to install Umi and all the external plugins you'll want to use. Alternatively, if you don't need a specific plugin, you can install the default bundle that includes a set of plugins that's suitable for most use cases.

Note: since the default bundle relies on web3.js for some of the interfaces you'll need to install that package as well.

Required Packages:

The following are the required packages that must be installed to use Umi:

npm i @metaplex-foundation/umi

npm i @metaplex-foundation/umi-bundle-defaults

npm i @solana/web3.js

For library authors:

Library authors, that want to use Umi's interfaces to drastically reduce their dependencies, will only need to install the main Umi library. It is highly recommended to install it as a peer dependency to ensure the end-user does not end up with multiple versions of the Umi library using the following command:

npm i @metaplex-foundation/umi --save-peer

For testing:

Also note that Umi comes with a testing bundle that can help both end-users and library authors to test their code. For instance, it includes a MockStorage implementation used for both the UploaderInterface and the DownloaderInterface so you can reliably test your code without having to rely on a real storage provider.

npm i @metaplex-foundation/umi

npm i @metaplex-foundation/umi-bundle-tests

Core JavaScript Library Installation

You can install the mpl-core library with the following command:

npm install @metaplex-foundation/mpl-core

Initialization

Next, we will import both libraries and create an Umi instance for Eclipse Mainnet:

import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import { mplCore } from '@metaplex-foundation/mpl-core'

// Use the RPC endpoint of your choice.
const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz').use(mplCore())

Then instruct Umi which wallet to use. You can create a new wallet for testing, import an existing wallet from the filesystem, or use a walletAdapter for web-based dApps.

From a New Wallet:

import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import { generateSigner, signerIdentity } from '@metaplex-foundation/umi'

const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz')

// Generate a new keypair signer.
const signer = generateSigner(umi)

// Tell Umi to use the new signer.
umi.use(signerIdentity(signer))

From an Existing Wallet saved using a File System:

import * as fs from "fs";
import * as path from "path";
import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import { createSignerFromKeypair, signerIdentity } from '@metaplex-foundation/umi'

const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz')

// Use fs to navigate the filesystem till you reach
// the wallet you wish to use via relative pathing.
const walletFile = fs.readFileSync(
  path.join(__dirname, './keypair.json')
)

// Usually Keypairs are saved as Uint8Array, so you
// need to transform it into a usable keypair.
let keypair = umi.eddsa.createKeypairFromSecretKey(new Uint8Array(walletFile));

// Before Umi can use this Keypair you need to generate
// a Signer type with it.
const signer = createSignerFromKeypair(umi, keypair);

// Tell Umi to use the new signer.
umi.use(signerIdentity(walletFile))

From an Existing Wallet saved using Solana Wallet Adapter:

import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import { walletAdapterIdentity } from '@metaplex-foundation/umi-signer-wallet-adapters'
import { useWallet } from '@solana/wallet-adapter-react'

const wallet = useWallet()

const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz')

// Register Wallet Adapter to Umi
umi.use(walletAdapterIdentity(wallet))

Note: The walletAdapter section provides only the code needed to connect it to Umi, assuming you've already installed and set up the walletAdapter. For a comprehensive guide, refer to this guide

The Umi interface stores two instances of Signer: The identity using the app and the payer paying for transaction and storage fees. By default, the signerIdentity method will also update the payer attribute since, in most cases, the identity is also the payer.

If you want to learn more, go to the Umi Context Interfaces Paragraph

Creating Assets

You can now interact with Core Assets and Core Collections by using the various functions provided by the library and passing your Umi instance to them. Here's an example of creating an Asset:

const result = createV1(umi, {
  asset: asset,
  name: 'My Nft',
  uri: 'https://example.com/my-nft',
}).sendAndConfirm(umi)

Fetch a Single Asset

To fetch the data of your newly created asset you can use:

import { fetchAssetV1 } from '@metaplex-foundation/mpl-core'

const asset = await fetchAssetV1(umi, asset.publicKey)

console.log(asset)

Metaplex Core - Rust

If you are a Rust developer, you can also use a Rust client SDK to interact with the Token Metadata program. Metaplex provides a dedicated Rust client crate, which is a lightweight crate with minimal dependencies.

To get started, you'll need to add the mpl-token-metadata dependency to your project. From a terminal on the root folder of your project:

cargo add mpl-token-metadata

Structure

The client SDK is divided into several modules:

accounts: structs representing the accounts of the program
errors: enum representing program errors
instructions: structs to facilitate the creation of instructions from client (off-chain) and programs (onchain), and instruction arguments
types: structs representing types used by the program

A good starting point to explore is the instructions module, which contains helpers to create instructions to interact with Token Metadata. These are designed to be flexible and easy-to-use. If an instruction requires additional types, these will be referenced from the types module. If you want to deserialize the content of a Token Metadata account, the accounts module has a struct representing each account with helpers methods to deserialize their content.

Instruction Builders

One of the main features of the client SDK is to facilitate the creation of instructions. There are two types of instruction builders depending on whether you are writing off-chain or onchain code, and both support passing accounts by name and optional positional accounts.

Client (off-chain)

These are intended to be used by off-chain client code. Each instruction is represented by a struct, where its fields are the Pubkeys of the required accounts.

CreateV1 instruction code:

pub struct CreateV1 {
    /// Unallocated metadata account with address as pda
    /// of ['metadata', program id, mint id]
    pub metadata: Pubkey,

    /// Unallocated edition account with address as pda
    /// of ['metadata', program id, mint, 'edition']
    pub master_edition: Option<Pubkey>,

    /// Mint of token asset
    pub mint: (Pubkey, bool),

    /// Mint authority
    pub authority: Pubkey,

    /// Payer
    pub payer: Pubkey,

    /// Update authority for the metadata account
    pub update_authority: (Pubkey, bool),

    /// System program
    pub system_program: Pubkey,

    /// Instructions sysvar account
    pub sysvar_instructions: Pubkey,

    /// SPL Token program
    pub spl_token_program: Pubkey,
}

After filling in the instruction account fields, you can use the instruction(...) method to generate the corresponding Instruction:

// instruction args
let args = CreateV1InstructionArgs {
    name: String::from("My pNFT"),
    symbol: String::from("MY"),
    uri: String::from("https://my.pnft"),
    seller_fee_basis_points: 500,
    primary_sale_happened: false,
    is_mutable: true,
    token_standard: TokenStandard::ProgrammableNonFungible,
    collection: None,
    uses: None,
    collection_details: None,
    creators: None,
    rule_set: None,
    decimals: Some(0),
    print_supply: Some(PrintSupply::Zero),
};

// instruction accounts
let create_ix = CreateV1 {
    metadata,
    master_edition: Some(master_edition),
    mint: (mint_pubkey, true),
    authority: payer_pubkey,
    payer: payer_pubkey,
    update_authority: (payer_pubkey, true),
    system_program: system_program::ID,
    sysvar_instructions: solana_program::sysvar::instructions::ID,
    spl_token_program: spl_token::ID,
};

// creates the instruction
let create_ix = create_ix.instruction(args);

At this point, create_ix is an Instruction ready to be added to a transaction and sent for processing.

In the example above, you probably noticed that even when we do not need to provide a value for an optional argument, we still need to specify None. To facilitate the creation of instructions even further, you can use the *Builder companion struct.

Creating an Instruction using CreateV1Builder:

let create_ix = CreateV1Builder::new()
    .metadata(metadata)
    .master_edition(Some(master_edition))
    .mint(mint_pubkey, true)
    .authority(payer_pubkey)
    .payer(payer_pubkey)
    .update_authority(payer_pubkey, true)
    .is_mutable(true)
    .primary_sale_happened(false)
    .name(String::from("My pNFT"))
    .uri(String::from("https://my.pnft"))
    .seller_fee_basis_points(500)
    .token_standard(TokenStandard::ProgrammableNonFungible)
    .print_supply(PrintSupply::Zero)
    .instruction();

The end result is the same create_ix instruction to be added to a transaction and sent for processing.

Cross Program Invocation (onchain):

When you are writing a program that needs to interact with Token Metadata, you can use the onchain Cross Program Invocation (CPI) builder. They work similarly to off-chain builders, with the main difference being that they expect AccountInfo references instead of Pubkey.

TransferV1Cpi instruction struct:

pub struct TransferV1Cpi<'a> {
    /// The program to invoke.
    pub __program: &'a AccountInfo<'a>,

    /// Token account
    pub token: &'a AccountInfo<'a>,

    /// Token account owner
    pub token_owner: &'a AccountInfo<'a>,

    /// Destination token account
    pub destination_token: &'a AccountInfo<'a>,

    /// Destination token account owner
    pub destination_owner: &'a AccountInfo<'a>,

    /// Mint of token asset
    pub mint: &'a AccountInfo<'a>,

    /// Metadata (pda of ['metadata', program id, mint id])
    pub metadata: &'a AccountInfo<'a>,

    /// Edition of token asset
    pub edition: Option<&'a AccountInfo<'a>>,

    /// Owner token record account
    pub token_record: Option<&'a AccountInfo<'a>>,

    /// Destination token record account
    pub destination_token_record: Option<&'a AccountInfo<'a>>,

    /// Transfer authority (token owner or delegate)
    pub authority: &'a AccountInfo<'a>,

    /// Payer
    pub payer: &'a AccountInfo<'a>,

    /// System Program
    pub system_program: &'a AccountInfo<'a>,

    /// Instructions sysvar account
    pub sysvar_instructions: &'a AccountInfo<'a>,

    /// SPL Token Program
    pub spl_token_program: &'a AccountInfo<'a>,

    /// SPL Associated Token Account program
    pub spl_ata_program: &'a AccountInfo<'a>,

    /// Token Authorization Rules Program
    pub authorization_rules_program: Option<&'a AccountInfo<'a>>,

    /// Token Authorization Rules account
    pub authorization_rules: Option<&'a AccountInfo<'a>>,

    /// The arguments for the instruction.
    pub __args: TransferV1InstructionArgs,
}

The instruction struct requires three different pieces of information: (1) the program to CPI into it – __program field; (2) a variable list of accounts represented by references to AccountInfo; (3) the instruction args – __args field. To simplify the creation of the struct, there is a new(...) factory method. After filling in the program, instruction accounts and argument fields, you can use the invoke() or invoke_signed(...) method to perform the CPI.

Invoking the TransferV1Cpi instruction:

// creates the instruction
let cpi_transfer = TransferV1Cpi::new(
    metadata_program_info,
    TransferV1CpiAccounts {
        token: owner_token_info,
        token_owner: owner_info,
        destination_token: destination_token_info,
        destination_owner: destination_info,
        mint: mint_info,
        metadata: metadata_info,
        authority: vault_info,
        payer: payer_info,
        system_program: system_program_info,
        sysvar_instructions: sysvar_instructions_info,
        spl_token_program: spl_token_program_info,
        spl_ata_program: spl_ata_program_info,
        edition: edition_info,
        token_record: None,
        destination_token_record: None,
        authorization_rules: None,
        authorization_rules_program: None,
    },
    TransferV1InstructionArgs {
        amount,
        authorization_data: None,
    },
);

// performs the CPI
cpi_transfer.invoke_signed(&[&signer_seeds])

You have probably noticed (again) that for every optional account/argument that we do not pass a value, we still need to set it to None. Similarly to the off-chain instructions, CPI instructions have a companion *Builder struct.

Invoking the TransferV1Cpi instruction using TransferV1CpiBuilder:

// creates the instruction
let cpi_transfer = TransferV1CpiBuilder::new(metadata_program_info)
    .token(owner_token_info)
    .token_owner(owner_info)
    .destination_token(destination_token_info)
    .destination_owner(destination_info)
    .mint(mint_info)
    .metadata(metadata_info)
    .edition(edition_info)
    .authority(vault_info)
    .payer(payer_info)
    .system_program(system_program_info)
    .sysvar_instructions(sysvar_instructions_info)
    .spl_token_program(spl_token_program_info)
    .spl_ata_program(spl_ata_program_info)
    .amount(amount);

// performs the CPI
cpi_transfer.invoke_signed(&[&signer_seeds])

PDA Helpers

Another set of useful helpers of the SDK are the PDA lookups. Account types representing PDAs (e.g., Metadata) have associated functions to find/create PDA Pubkey.

Implementation of find_pda and create_pda helper methods:

impl Metadata {
    pub fn find_pda(mint: Pubkey) -> (Pubkey, u8) {
        Pubkey::find_program_address(
            &[
                "metadata".as_bytes(),
                crate::MPL_TOKEN_METADATA_ID.as_ref(),
                mint.as_ref(),
            ],
            &crate::MPL_TOKEN_METADATA_ID,
        )
    }

    pub fn create_pda(
        mint: Pubkey,
        bump: u8,
    ) -> Result<Pubkey, PubkeyError> {
        Pubkey::create_program_address(
            &[
                "metadata".as_bytes(),
                crate::MPL_TOKEN_METADATA_ID.as_ref(),
                mint.as_ref(),
                &[bump],
            ],
            &crate::MPL_TOKEN_METADATA_ID,
        )
    }
}

The find_pda method is usually used on off-chain clients:

let (metadata_pubkey, _) = Metadata::find_pda(mint);

The create_pda method is recommended to be used onchain, since it can save compute units in comparison to find_pda, but it does require storing the bump used to generate the PDA derivation:

let metadata_pubkey = Metadata::create_pda(mint, bump)?;

Metaplex Candy Machine

The Metaplex Candy Machine protocol is the simplest way to deploy and launch NFT collections on the SVM. It works by deploying a lazy-minting protocol that stores the asset data for an entire collection and allows minters to mint assets from the collection. Candy Machine supports a wide array of “Guards” which offer a range of conditions that must first be met in order to mint an asset from the collection.

Popular Guards include Payment, which represents the sale price; Token Gate, which can be used to gate the collection to an allowlist token mint; Token Payment, which allows payment in a custom token of the creator’s choosing; Start Date, which establishes the start time of the sale. Candy Machine currently supports over 20 guards with more being added regularly.

Official Candy Machine documentation: https://developers.metaplex.com/candy-machine

Candy Machine - Javascript

Metaplex provides a JavaScript library that can be used to interact with Candy Machines. Thanks to the Umi framework, it ships without many opinionated dependencies and, thus, provides a lightweight library that can be used in any JavaScript project.

To get started, you'll need to install the Umi framework and the Candy Machine JavaScript library:

npm install \
  @metaplex-foundation/umi \
  @metaplex-foundation/umi-bundle-defaults \
  @solana/web3.js \
  @metaplex-foundation/mpl-candy-machine

Next, you may create your Umi instance and install the mplCandyMachine plugin:

import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import { mplCandyMachine } from '@metaplex-foundation/mpl-candy-machine'

// Use the RPC endpoint of your choice.
const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz').use(mplCandyMachine())

Then you want to tell Umi which wallet to use. Please see the previous section.

That's it, you can now interact with NFTs by using the various functions provided by the library and passing your Umi instance to them. Here's an example of fetching a candy machine account and its associated candy guard account.

import { publicKey } from '@metaplex-foundation/umi'
import {
  fetchCandyMachine,
  fetchCandyGuard,
} from '@metaplex-foundation/mpl-candy-machine'

const candyMachinePublicKey = publicKey('...')
const candyMachine = await fetchCandyMachine(umi, candyMachinePublicKey)
const candyGuard = await fetchCandyGuard(umi, candyMachine.mintAuthority)

Candy Machine - Rust

If you are a Rust developer, you can also use a Rust crate to interact with the Candy Machine program. Since the program is written in Rust, this crate contains all the program's logic, including helper methods that prepare instructions for us.

This can be helpful if you are developing a Rust client or if you want to make CPI calls to the Candy Machine program within your program.

Since candy machines are composed of two programs, you will need to install two libraries.

Candy Machine Core
Candy Guard

Candy Machine - Sugar

To get started, first check that you have Sugar installed on your system:

sugar --version

The command above should print the Sugar version – e.g., sugar-cli 2.5.0.

By default, Sugar uses the keypair and RPC settings from solana-cli. You can check your current settings by running:

solana config get

And you can set different settings by running:

solana config set --url <rpc url> --keypair <path to keypair file>

Sugar does not require solana-cli to be installed on the system. Every command in Sugar accept the flags -k (keypair) and -r (RPC) to configure the values to use.

Preparing Your Files

Create a folder for your project and within it, create a folder named assets to store your json metadata and image file pairs with the naming convention 0.json, 0.png, 1.json, 1.png, and so on. The metadata extension is .json and the image files can be .png, .gif, .jpg and .jpeg. Additionally, you will need collection.json and collection.png files containing the information for your collection NFT.

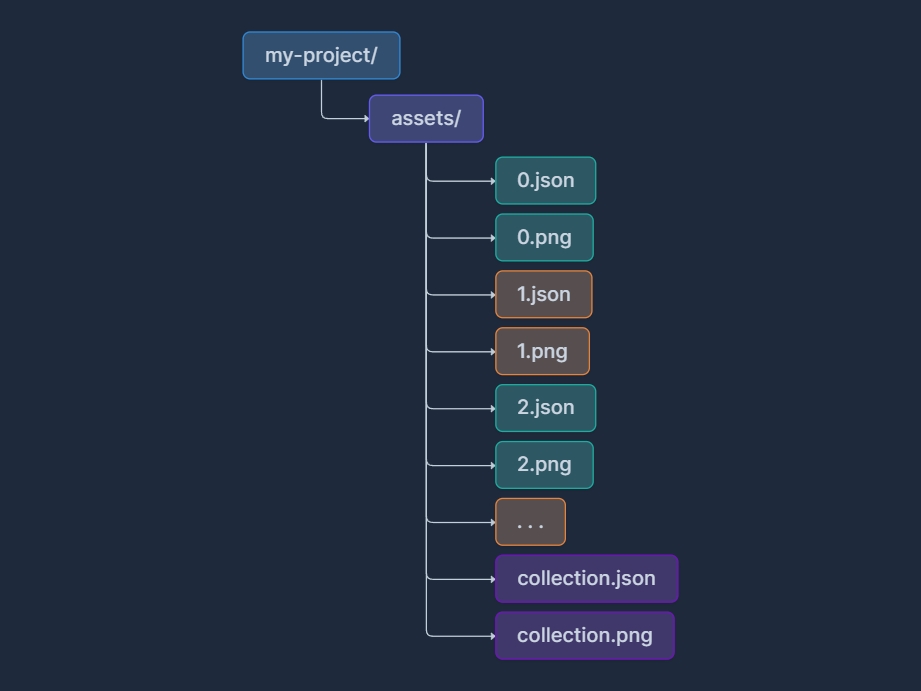

Your project directory will then look like:

Running Sugar

Within your project directory, use the launch command to start an interactive process of creating your config file and deploying a Candy Machine to Solana:

sugar launch

At the end of the execution of the launch command, a Candy Machine will be deployed onchain. You can use the mint command to mint an NFT:

sugar mint

When all NFTs have been minted, you can close your Candy Machine and reclaim the account rent:

sugar withdraw

The withdraw command will close the Candy Machine even if it is not empty, so use it with caution.

Metaplex Core Candy Machine

The Metaplex Protocol Candy Machine is the leading minting and distribution program for fair NFT collection launches on SVM chains. With the introduction of the Metaplex Core Protocol simplifying the NFT process, it was only fitting for a Core edition of the Candy Machine to come to the masses. Much like its name suggests, you can think of a Candy Machine as a temporary structure which is first loaded by creators and then unloaded by buyers. It allows creators to bring their digital assets onchain in a secure and customisable way.

Official Core Candy Machine documentation: https://developers.metaplex.com/core-candy-machine

Core Candy Machine - Javascript

Metaplex provides a JavaScript library that can be used to interact with the Core Candy Machine program. Thanks to the Umi framework, it ships without many opinionated dependencies and, thus, provides a lightweight library that can be used in any JavaScript project.

To get started, you'll need to install the Umi framework and the Core Candy Machine JavaScript library:

npm install \
  @metaplex-foundation/umi \
  @metaplex-foundation/umi-bundle-defaults \
  @metaplex-foundation/mpl-core-candy-machine

Next, you may create your Umi instance and install the mplCore plugin like so:

import { createUmi } from '@metaplex-foundation/umi-bundle-defaults'
import {
  mplCandyMachine as mplCoreCandyMachine
} from "@metaplex-foundation/mpl-core-candy-machine";

// Use the RPC endpoint of your choice.
const umi = createUmi('https://mainnetbeta-rpc.eclipse.xyz').use(mplCoreCandyMachine())

Then you want to tell Umi which wallet to use. Please see the previous section.

That's it, you can now start interacting with the Core Candy Machine program.

Core Candy Machine - Rust

Metaplex provides a Rust library that can be used to interact with the Core Candy Machine program on both a client and program level.

To get started, you'll need to install the Core Candy Machine Crate.

cargo add mpl-core-candy-machine-core

Helpful Links:

PreviousNFTs NextNifty Asset

Last updated 2 months ago
